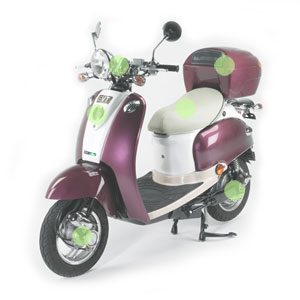

EVT-168
EVT 168
Specification
BRAND |
EVT | FRAME | UNDER BONE | |||
| MODEL | EVT-168 | TXS | TYPE | DIRECT DRIVEN | ||
| DIMENSION | LENGTH | 165.0cm | GEAR RATIO | DIRECT DRIVEN | ||
| WIDTH | 74.0cm | BATTERY | TYPE | VRLA LEAD ACID | ||
| HEIGHT | 109.0cm | DIMENSION (mm) | 175 (L) X165 (W) X175 (H) | |||
| AXLE LENGTH | 121.0cm | WEIGHT | 15 Kg x 4 | |||
| WEIGHT | UNLOAD | FRONT | 43.0Kg | VOLUME | 12V/50Ah x 4 | |
| REAR | 85.0Kg | SUSPENSION | FRONT | SPRING SHOCK ABSORBER | ||
| TOTAL | 128.0Kg | REAR | HYDRAULIC SHOCK ABSORBER | |||
| RIDERS/WEIGHT | 1 P (150 Kg) | TIRE PRESSURE |
FRONT | 30 PSI | ||
| SPEC | MAX.SPEED | 65 Km/hr |
REAR | 36 PSI | ||
| CLIMBING | 20°/45 Km/hr | TIRE SIZE & PAIRS (p.r) |
FRONT REAR |
3.00-10-6 pr 3.00-10-6 pr |
||
| MOTOR | TYPE | 48V BRUSHED | BRAKE | FRONT | DRUM BRAKE | |
| CONTROLLER | PWM | REAR | DISK BRAKE | |||
| MAX.H.P | 3.0 Hp/755 rpm | SPEEDO METER | 80 km/hr | |||
| CHARGER | CHARGING TIME | 4 hr (up to 90%) | LAMPS | FRONT (HI, LO) | HI 12V/35W LO 12V/35W | |
| POWER | 400 W | PLATE LAMP | 12V/5W | |||
| INPUT | AC 110V/220V | BRAKE LAMP | 12V/21W | |||
| OUTPUT | 48V | DIRECTION LAMP | 12V/10W x 4 | |||
